32 Meter Concrete Boom Pump Rentals
Andrews Equipment – Jessup, MD

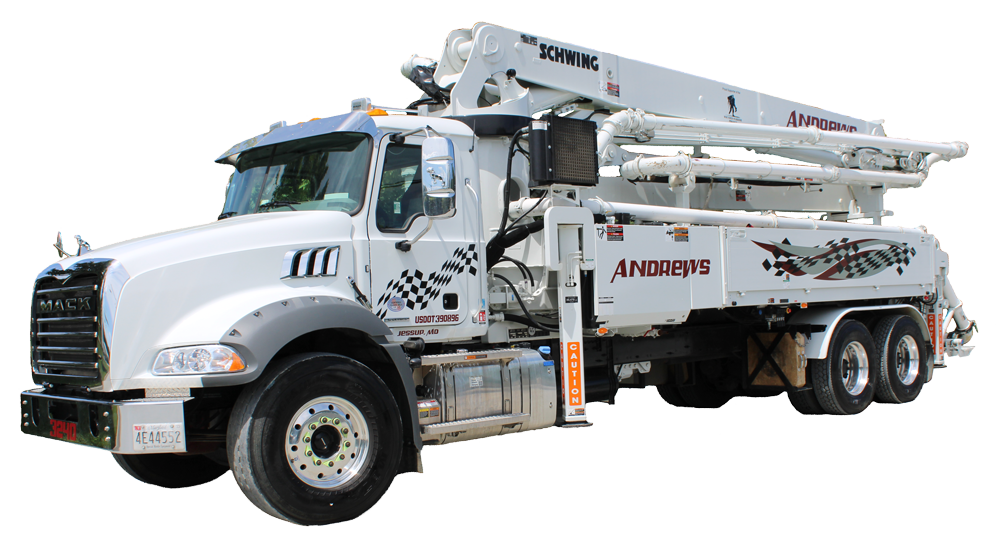

32 Meter
Truck Mounted Concrete Boom Pump
Hourly Rentals with a Certified Operator
SPECIFICATIONS
32 Meter Concrete Boom Pump
Pump Kit Specs
Specification
U.S. Specs
Theoretical Concrete Output Per Hour
208 cubic yards
Maximum Pressure on Concrete
950 psi
Maximum Aggregate Size
2.5 in

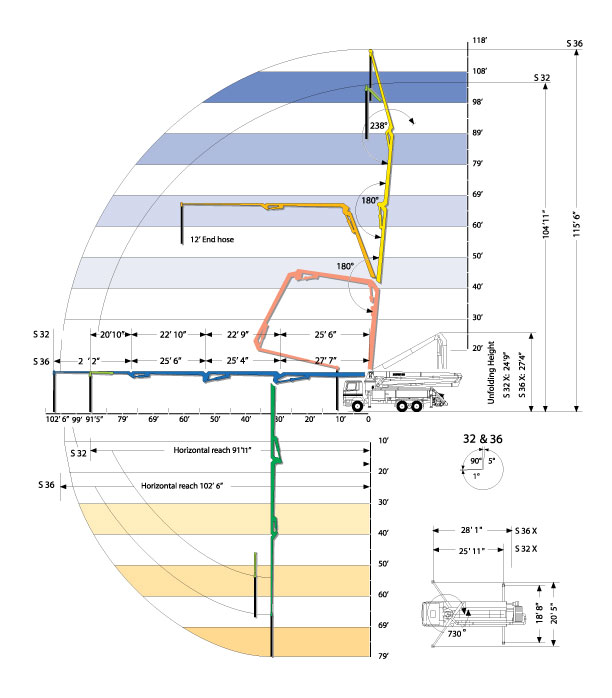

Boom Specs
Specification
U.S. Specs
Vertical Reach
104 ft 11 in
Horizontal Reach
91 ft 11 in
Net Horizontal Reach
83 ft 7 in
Unfolding Height
24 ft 9 in
Outrigger Width
20 ft 5 in
One Side Outrigger Support Width
14 ft 5 in

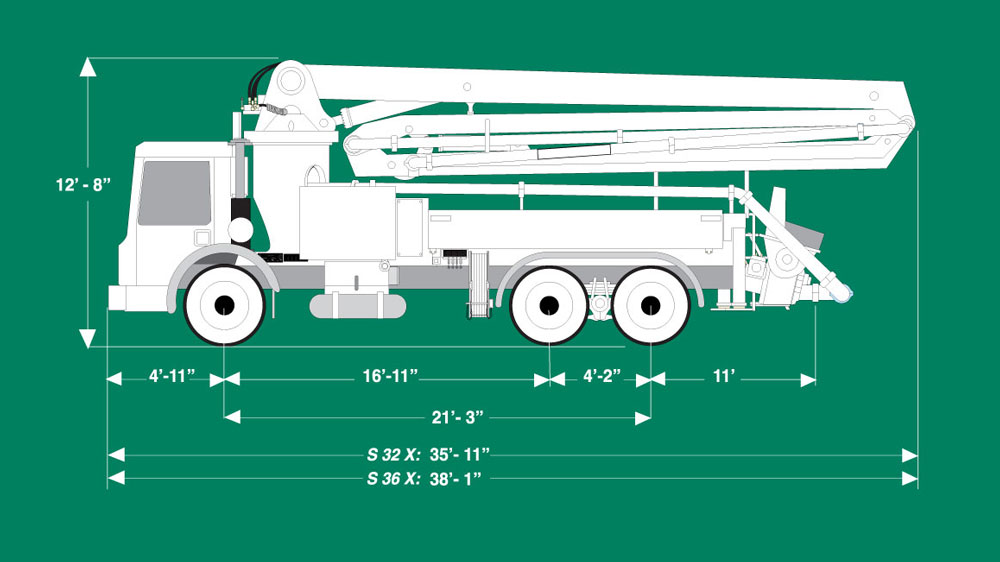

Truck Length
36 ft
Four-section boom versatility, impressive output and Schwing reliability.
An All Around Boom Pump Value
This Generation 3 open loop, fully hydraulic concrete pump is engineered for exceptional efficiency, dependable operation, and consistent performance. Its twin circuit hydraulic system works together with industry leading long stroke pumping cylinders to deliver a steady, uninterrupted concrete flow while reducing stress on the boom for extended service life. The Big Rock Valve is built to handle demanding mix designs with ease, helping improve durability and lower overall operating costs per yard.
The patented Vector control system enables direct two-way communication between the operator and the pump for precise control and monitoring. Key performance and operating information is displayed in real time on the remote unit and also recorded within the controller, allowing for quick access to system data when needed.
Whether it serves as your primary boom pump or expands an existing fleet, the S 32 X, with its 104-foot-11-inch reach, provide the versatility needed to handle a wide range of projects. Their proven Roll and Fold design offers low unfolding clearance and quick cleanout, helping crews complete more jobs efficiently throughout the day. Mounted on a three-axle chassis, these units deliver excellent maneuverability, making them well-suited for both tight jobsites and urban environments.
Each model comes equipped with efficient, high-performance pump kits. The S 32 X features the 2023-5 130/80 MPS system capable of delivering up to 211 cubic yards per hour. These systems are engineered to move more concrete with fewer strokes, reducing wear, extending component life, lowering fuel usage, and minimizing downtime.
Standard equipment includes a durable twin-wall Super 3000 pipeline, carbide-reinforced wear components, a large 105-gallon water tank paired with a high-output water pump, and an integrated lighting package for improved visibility during low-light operations. Available upgrades include automatic lubrication systems, a high-pressure washdown system with a wand, and a heated water tank for cold-weather performance. Built with globally standardized components, these boom pumps offer outstanding reliability and value while maintaining competitive ownership costs.
