46 Meter Concrete Boom Pump Rentals
Andrews Equipment – Jessup, MD

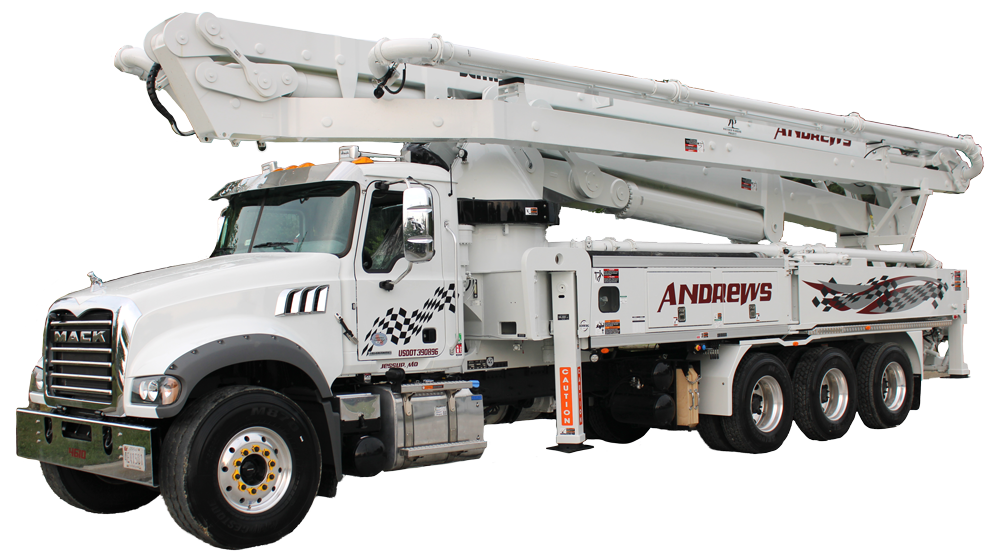

46 Meter
Truck Mounted Concrete Boom Pump
Hourly Rentals with a Certified Operator
SPECIFICATIONS
46 Meter Concrete Boom Pump Rentals
Pump Kit Specs
Specification
U.S. Specs
Theoretical Concrete Output Per Hour
213 cubic yards
Maximum Pressure on Concrete
1169 psi
Maximum Aggregate Size
2.5 in

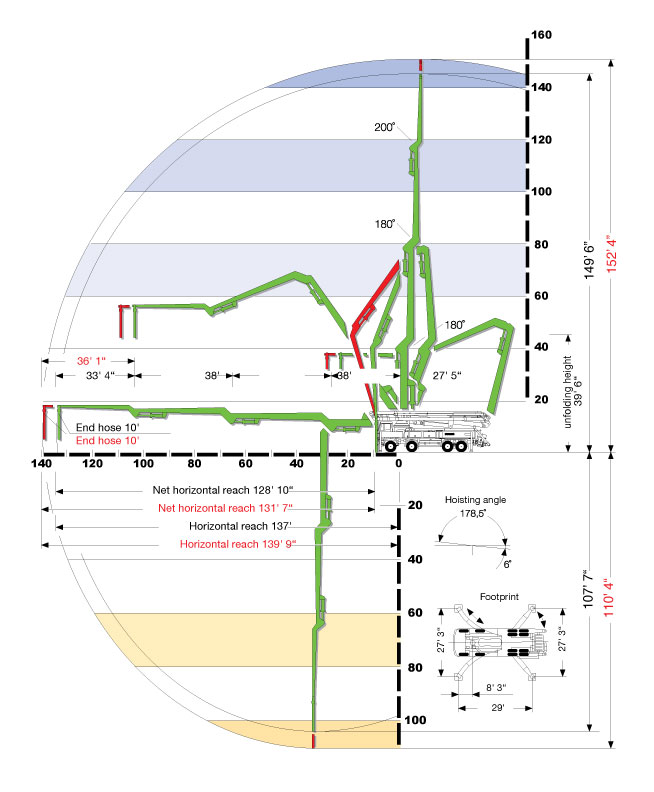

Boom Specs
Specification
U.S. Specs
Vertical Reach
152 ft 4 in
Horizontal Reach
136 ft 10 in
Net Horizontal Reach
128 ft 10 in
Unfolding Height
39 ft 6 in
Outrigger Width
27 ft 3 in
One Side Outrigger Support Width
18 ft

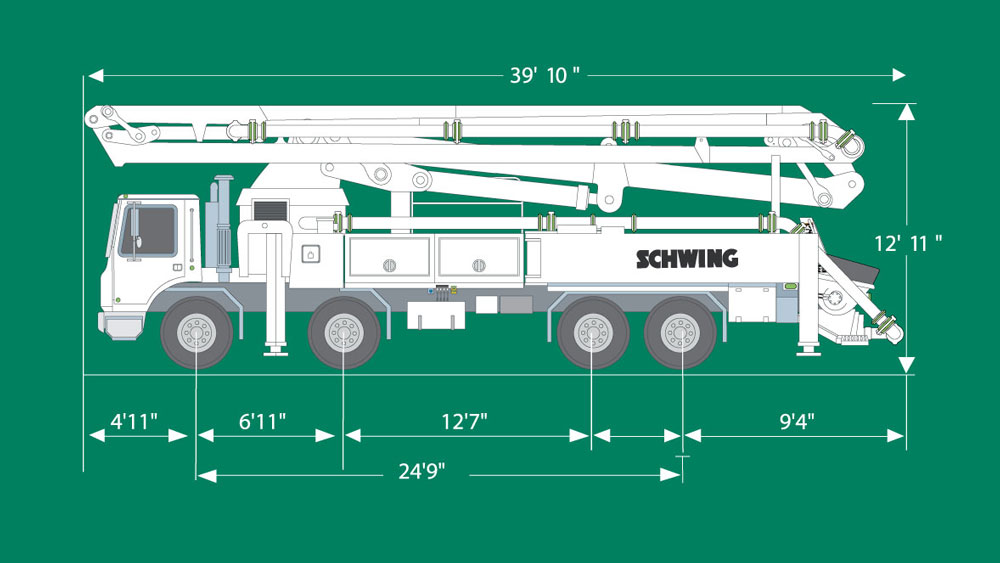

Truck Length
40 ft
Extended Reach.
Maximum Versatility.
The Schwing S 46 SX is engineered for contractors who need longer reach without sacrificing maneuverability. Featuring an optional extended tip section that adds additional reach, this 46-meter boom pump delivers exceptional placement flexibility for commercial, industrial, and bridge projects.
Mounted on a three-axle configuration, the S 46 SX provides serious reach while maintaining jobsite mobility. It allows contractors to compete in larger markets while still accessing tighter or more confined locations.
Overhead Roll & Fold™ Boom Design
The S 46 SX utilizes Schwing’s proven Overhead Roll & Fold™ boom configuration, designed for versatility and performance in demanding conditions.
Key advantages include:
- 180-degree articulating main section
- Ability to guide the boom horizontally into enclosed spaces
- Vertical reach up to 152 feet 4 inches
- Horizontal reach up to 136 feet 10 inches over the cab
- 400 degrees of total boom articulation
Whether placing concrete deep inside a structure or stretching across large decks and slabs, proportional boom controls give operators smooth, confident handling and precise placement control.
Built for Performance and Productivity
The S 46 SX is designed for contractors who demand reliability, output, and longevity. Its engineering supports:
- Consistent concrete flow
- Reduced wear on components
- Long-term durability
- Efficient service access
From controlled pours in complex structures to high-production deck placements, the S 46 SX maximizes daily productivity and long-term return on investment.
The Schwing Support Advantage
When you invest in Schwing equipment, you gain access to a nationwide support network.
- Factory-trained technicians
- Strategically located parts inventory
- Dedicated customer support team
- Professional operator training programs
- Exclusive Green Shield warranty coverage
- Optional extended warranty up to three years
Andrews Equipment Company supports contractors throughout Maryland, Washington DC, Northern Virginia, Delaware, and the Mid-Atlantic region from our Jessup, MD location.
