Loop Belt™ Truck-Mounted Telescopic Conveyor Rentals
Andrews Equipment – Jessup, MD

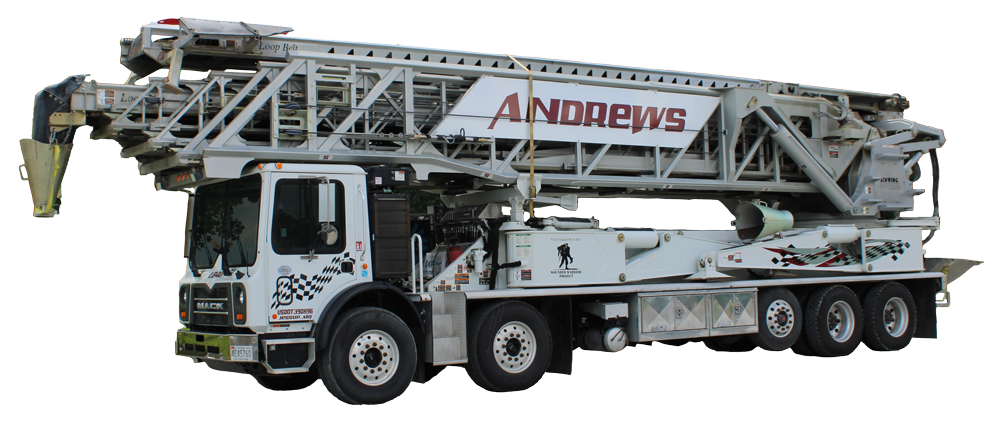

Schwing Loop Belt™
Truck-Mounted Telescopic Conveyors
Hourly Rentals with a Certified Operator
SPECIFICATIONS

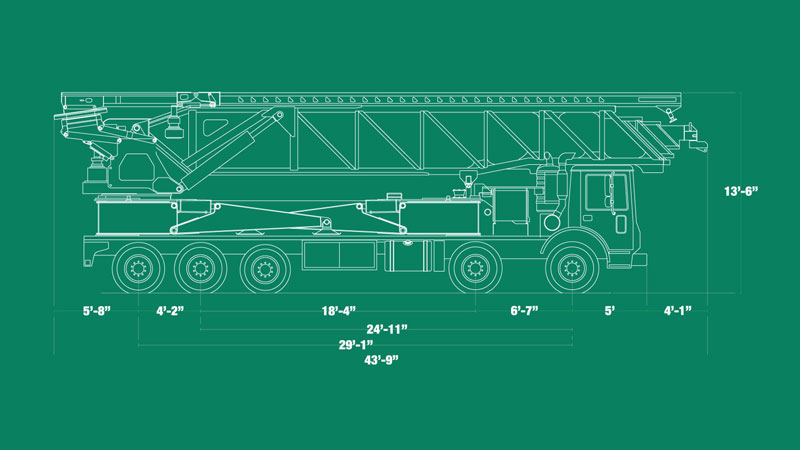

Schwing Loop Belt™ Truck-Mounted Telescopic Conveyor
Conveyor Specs
Specification
U.S. Specs
Conveyor Horizontal Reach (Max at 0°)
129 ft 9 in
Conveyor Horizontal Reach (Max at 30°)
113 ft 2 in
Conveyor Belt Width
20 in
Feed Conveyor Length
40 in
Feed Conveyor Belt Width
20 in
Discharge Height from Grade (Max at 30°)
72 ft
Discharge Height from Grade (Max at -12°)
20 ft
Observed Capacity at 0°
8.40 cu yds/min
Observed Capacity at 20°
5.33 cu yds/min
Outriggers Specs
Specification
U.S. Specs
Net Reach Beyond Outriggers (Max at 0°)
122 ft 8 in
Net Reach Beyond Outriggers (Max at 30°)
106 ft
Outrigger Spread L-R Front (Hydraulic Out)
31 ft 3 in
Outrigger Spread L-R Rear (Hydraulic Out)
32 ft 3 in
General & Truck Specs
Specification
U.S. Specs
Weight
22,500 lb
Engine Horsepower
425 HP
Wheelbase
324 in
Cab Height
104 in
Fuel Tank Capacity
80 gal
Water Tank Capacity
150 gal
Hydraulic Tank Capacity (with cooler)
180 gal
Best of Breed
In Every Way That Matters
Strong, lightweight, and easy to control, Schwing Loop Belt truck-mounted telescopic conveyors are available in multiple mounting configurations, including truck, semi-trailer, or tower. Each system is designed to save time and labor while improving material placement efficiency.
Ideal Applications
- Residential: Footings, walls, and gravel
- Slab on grade
- Tilt up
- Mezzanines
- Bridge decks
- Wind turbine foundations
- Mat pours
- Warehouse slabs
- Commercial foundations
- Backfill
- Stone
- Gravel
- Dirt
Conveys More Material.
Delivers More Confidence.
Ease of Use and Serviceability
Easy-to-understand hydraulic and wireless controls, paired with straightforward maintenance procedures, support fast operation, quick setup, and efficient teardown for faster turnaround times.
Save Time and Labor
Complete multiple tasks from one location with rapid setup and teardown. Place higher volumes of material with less manpower and reduced dependence on handling equipment for lower operating costs.
Move More Material
With long reach and 20-inch wide belts, these conveyors deliver up to 40% more material capacity and can handle large aggregates up to 6 inches. They are suited for low to no-slump concrete and a wide range of aggregate and backfill applications while reducing cost per yard.
Maximum Uptime
Designed with reliable performance and built-in innovation, Schwing Loop Belt truck-mounted telescopic conveyors are engineered to maximize uptime and extend service life.
Meet Your New Competitive Advantage
Proven, reliable, innovative—backed by patented designs.
Patented Designs
Patented feed conveyor, hinge, and transfer components are designed to improve material flow in high-capacity and demanding mix applications. Proudly designed and built in America, Schwing Loop Belt Telescopic Conveyors bring versatility and performance to new lengths.
Truck-Mounted Telescopic Belt Conveyors Designs
Models: LB33T4-20 and LB40T5-20
These feature-rich, technologically advanced telescopic belt conveyors deliver strong fuel efficiency and jobsite mobility while outmaneuvering other placing systems. They support a wide range of high-volume applications, including footings and foundations, bridge decks, mat pours, and wind energy tower foundations. With 360° rotation, material can be placed in virtually any position, and the feeder can be loaded from multiple locations.
Both the LB40T5-20 and LB33T4-20 are optimized on Mack TerraPro 8x4 chassis using a split shaft PTO. Either model can be mounted on a variety of chassis and configurations based on job requirements. With a 17-foot setup height, the LB40T5-20 is well suited for jobs with low overhead clearance.
Proven, Reliable,
Patented Innovations
- Hydraulically powered outriggers on all models for quick setup in congested areas and rough terrain.
- High-strength tubular steel welded boom structure and feed conveyor—stronger and lighter than competitive aluminum booms.
- 20-inch-wide conveyor belts deliver up to 40% more material capacity than 18-inch belts.
- U-troughed rollers on the feeder and boom for increased capacity and improved cleanliness.
- Externally mounted telescope drive motor and slewing motor positioned for easier service.
- Optimized on Mack TerraPro 8x4 chassis using a split shaft PTO (LB40T5-20 and LB33T4-20).
- Flexible mounting options across chassis and configurations to fit operational needs.
- 17-foot setup height on LB40T5-20 for enclosed structures, under bridges, and limited-access environments.
- Fully proportional boom and feeder functions using Hawe valves and a Scanreco wireless remote system.
- A 150-gallon water tank is integrated into the main structure.
- 360° rotation for material placement in any position and feeder loading from multiple locations.
- Feed conveyor transfer and turret mountings are designed for performance, clean operation, and easier maintenance.
- Efficient dual telescopic wire rope drive system for smooth conveyor extension and retraction.
